(Obsolete) Saftronics VG10 – Dynamic Torque Vector AC Drive
(Obsolete FINCOR Series 6600)

Standard Specifications

Environmental Conditions

EnclosureNEMA 1 Standard (NEMA 12, Open Chassis)

Installation Location:NEMA 1Intended for indoor use only, less than 1000 meters (3300 feet) elevation, not in contact with corrosive gas, oil mist, dust or direct sunlight.
NEMA 4Intended for use indoors to protect the enclosed equipment against splashing water, seepage of water, falling or hose directed water and severe external condensation. Installation should be less than 1000 meters (3300 feet) elevation, not in contact with corrosive gas, oil mist or direct sunlight.
NEMA 12Intended for indoor use only, less than 1000 meters (3300 feet) elevation,
not in contact with corrosive gas, oil mist, dust or direct sunlight.

Stored Temperature-25 to + 65°C (-13° to + 149°F)

Ambient Temperature-10 to 50°C (+14 to 122°F) Ventilating covers must be removed under conditions exceeding +40°C (+104°F) for models rated at 30 Hp or less.

Humidity5% to 95% relative humidity (non-condensing).

Vibration3mm peak from 2-9 Hz, 9.8 m/s2 from 9-20 Hz, 2 m/s2 from 20-55 Hz, 2 m/s2 from 55-200 Hz.

Cooling Method1 Hp and below – Convection
Above 1 Hp – Fan-cooled

Output

Rated Output Voltage230 VAG, 3-Phase, 200V/50 Hz or 3-Phase, 200V, 220V, 230V/60 Hz
460 VAG, 3-Phase, 380V, 400V, 415V, 440V/50 Hz or 3-Phase 380V, 400V, 440V, 480V/60 Hz

Rated Frequency50/60Hz

Overload Current Rating150% of rated current for 1 min.
180% of rated current for 0.5 sec > 30 Hp
200% of rated current for 0.5 sec < or = 30 Hp

Power Supply

Rated Input AC Voltage230 VAG: 200 to 230 VAG 50/60 Hz, 3 phase (1/4 to 30 Hp)
230 VAG: 200 to 220 VAC/50 Hz, 200 to 230 VAC/60 Hz 3 phase (40 Hp or more)
460 VAG: 380 to 480 VAG 50/60 Hz, 3 phase (1/2 to 30 Hp)
460 VAG: 380 to 440 VAC/50 Hz, 3 phase, 380 to 480 VAC/60 Hz (40 Hp or more)
Voltage: +10%, -15%; Voltage Unbalance – Within 3%
Frequency: +/-5%

Control SystemSinusoidal PWM Control (V/Hz control, Dynamic Torque Vector Control, Flux Vector Control with Optional Encoder Card)

Momentary Voltage Dip230 VAG: When the input voltage is 165 VAG or more, the drive can be operated continuously.
460 VAG: When the input voltage is 310 VAG or more, the drive can be operated continuously.
When the input voltage drops below 165/310 VAG from rated voltage, the drive can be operated for 15ms. The smooth recovery method is selectable.

Control

Starting Torque selected200%, 30 Hp or less, 180%, 40 Hp or more with Dynamic Torque Control

Carrier Frequency0.75-15 kHz -75 Hp or less
0.75-10 kHz -100 Hp or more

Frequency Setting ResolutionAnalog: 1/3000 of max. frequency (0.02 Hz/60 Hz; 0.05 Hz/150 Hz)
Digital: 0.01 Hz (max. frequency up to 99.99 Hz);
0.1 Hz (max. frequency of 100 Hz or more)

Output Frequency Accuracy (Stability)Analog setting: :to.2% or less of max. frequency (@ 25:t 10°G)
Digital setting: :to.01 % or less of max. frequency (@ -10 to +50°G)

Voltage/Frequency Characteristics 01 /F)Output voltage at base frequency can be adjusted separately, such as 80 to 240 V (230V series) or 320 to 480V (460V series)

Torque BoostAuto: 0.0 setting for optimum control corresponding to the load torque
Manual: 0.1 to 20.0 code setting for constant/variable torque load

Accel eration/Decel eration0.01 to 3600 seconds (Four acceleration/deceleration time settings are possible Characteristics independent of each other by selecting digital input signals

Operating Sound SelectionThe drive carrier frequency can be changed to reduce audible noise and sound tone.

Analog/Pulse OutputScale calibration of externally connected analog meter (10 VDC, 0-200% gain setting) and pulse output (300 to 6,000 P/S)

Data ProtectionData lock is possible to ensure that the data codes are not changed.

Pattern OperationSix independent stages (frequency up to 400 Hz, duration up to 6,000 seconds each).
Configuration:
Single cycle
Repeating cycling
Single cycle with continuous last setting speed

Momentary Power Loss Ride ThruSix selections available. (Refer to Power Supply Specification.)

High/Low LimiterOutput frequency upper and lower range limit 0 to 400 Hz; 1 Hz step settings.

BiasMagnitude of the zero offset can be set from -400 to 400 Hz (0.1 Hz steps.)

GainOutput frequency gain corresponding to the reference signal can be set from 0 to 200% (0.1 % steps.)

Programmable Jump FrequencyThree selectable frequencies can be set to avoid a mechanical resonant point. Width is adjustable from 0 to 30 Hz (1 Hz steps.)

Slip Compensation ControlMaintains motor at constant speed with load fluctuations. Adjustable from 0.00 Hz to 15.00 Hz.

Torque Limit ControlOutput torque can be controlled within a range of 20% to 200% (1 % steps.)

15 Step Preset Speed15 programmable preset speeds selectable by 4 contact closures.

PIDNormal or Inverse operation can be selected.

Momentary or Maintained Contact OperationSelection between the maintained contact operation/stop command (2-wire operation) or the momentary contact (3-wire operation).

Terminal Function ChangeMulti-Use terminals changed via Function Code settings. X1 to X9 inputs; Y1 to Y 4 transistor output and Y5 relay output.

Line to Drive Transition LogicProvides the logic for transferring a motor from AC line to drive operation in a bypass system.

Sensorless Vector Control (Dynamic Torque Vector Control)Improves torque characteristics throughout the speed range.
Improves speed regulation.

Operation

Frequency Reference SignalSpeed potentiometer: 0 to +10 VDC, 10 to 0 VDC
4 to 20 mA, 20 to 4mA
0 to +10 VDC

Digital Input SignalsMulti-step frequency selection (1 to 15 steps)
Acceleration and deceleration time selection (3 steps) Self-Hold selection (HLD)
Coast-to-Stop command (BX)
Alarm Reset (RST)
External Alarm (THR)
Jogging (JOG)
Frequency setting 2 / Frequency setting 1 (Hz2 / Hz1)
Motor 2 / Motor 1 (M2/ M1)
DC injection brake command (DCBRK)
Torque limit 2 / Torque limit 1 (TL2 / TL 1)
Switching operation from line to drive (50 Hz) (SW50) Switching operation from line to drive (60 Hz) (SW60)
UP command (UP)
DOWN command (DOWN)
Edit permission command (data change permission) (WE-KP) PID control cancellation (Hz/PID)
Normal/inverse switching (Terminals 12 and C1) (IVS) Interlock (52-2) (lL)
Torque control cancellation (Hz/TRQ)
Link operation selection (Standard: RS485, Option: BUS) (LE) Universal 01 (U-DI)
Pick up start mode (STM)
SY-PG enable (PG/Hz)
Zero speed command (ZERO)
Timed alarm stop command (STOP 1)
Timed alarm stop command with Deceleration time 4 (STOP 4) Pre-exiting command (EXITE)

Digital Output SignalsOne Dry, Form C “fault” output contact rated 250 VAG, 0.3 amp.
One auxiliary relay contact rated 250 VAG, 0.3 amp
Four Open collector outputs each rated 27 VDC, 50 mA from external power. One relay and four open collector outputs can be configured to provide one of the following functions:

  • Operating (RUN)
  • Frequency arrival (FAR)
  • Frequency detection (FDT1)
  • Stopping due to overvoltage (LV)
  • Torque polarity detection (B/D)
  • Torque limiting (TL)
  • Restarting after momentary power failure (IPF)
  • Overload- early warning (OLl)
  • During Keypad panel operation (KP)
  • Drive stopping (STP)
  • Ready for operation (RDY)
  • Operation switching between line and drive (SW88)
  • Operation switching between line and drive (SW52-2)
  • Operation switching between line and drive (SW52-1)
  • Motor 2 switching (SWM2)
  • Terminal AX function (AX)
  • Pattern operation stage change (TU)
  • Pattern operation cycle operation completed (TO)
  • Pattern operation stage number (STG1)
  • Pattern operation stage number (STG2)
  • Pattern operation stage number (STG4)
  • Alarm detail (AL 1 ) – Alarm detail (AL2)
  • Alarm detail (AL4) – Alarm detail (AL8)
  • Cooling fan operating (FAN)
  • Retry function operating (TRY)
  • Universal DO (U-DO)
  • Heatsink overheat- early warning (OH)
  • Synchronizing completed by synchronous operation card (SY)
  • 2nd frequency level detection (FDT2)
  • 2nd OL level- early warning (0L2)
  • Terminal C1 off signal (C10FF)

Protective Functions
  • Overcurrent
  • Ground Fault
  • Overvoltage
  • Undervoltage
  • Input Phase Loss
  • Overheating of Heatsink
  • External Alarm
  • Overheating Internally
  • Overheating of Braking Resistor
  • Motor 1 Overload
  • Motor 2 Overload
  • Inverter Overload
  • Blown Fuse
  • Memory Error
  • Keypad Panel Communication Error
  • CPU Error
  • Option Error
  • Operating Error
  • Output Wiring Error
  • Modbus RTU Error




Keypad FeaturesDigital Display – 4 digit LED
Six Languages (English, German, French, Spanish, Italian, Japanese) Graphic Display – LCD, with backlight
Nine program menu includes data copy function

Keypad Display
  • Output frequency 1 (before slip compensation)
  • Output frequency 2 (after slip compensation)
  • Setting Frequency
  • Output Current
  • Output Voltage (specified value)
  • Synchronous Speed
  • Line Speed
  • Load Rotation Speed
  • Torque Calculation Value
  • Power Consumption
  • PID Setting Value
  • PID Remote Setting Value
  • PID Feedback Value
  • Program Menu Mode

Keypad Display in Program Mode Function Code and setting data displayed (see Operation Panel paragraph)

RS485 RTU Serial Communication– Physical Level:EINRS485
– Transmission Distance:500m max.
– Number of nodes:32 total
– Transmission Speed:19200, 9600, 4800, 2400 (bits/s)
– Transmission mode:Half duplex
– Transmission protocol:Modbus RTU
– Character code:Binary
– Character length:8 bits
– Error check:CRC

Charge Lamp (LED)Lights when DC Link capacitor voltage is present.

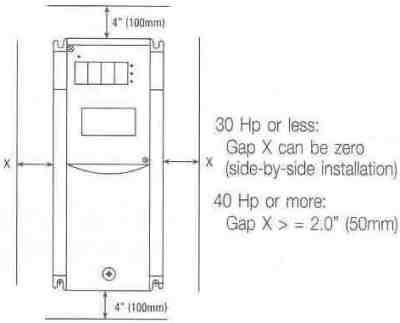

Mounting Clearance

Saftronics VG10 - Dynamic Torque Vector AC Drive - Mounting Clearance
