Saftronics

All Saftronics Drives are Obsolete

If you need a replacement for an existing Saftronics drive, complete the following form and we will send you a quote for a suitable replacement.

* Required Fields

Your Name *:

Email Address *:

Phone Number:

Complete Saftronics Part Number *:

Application (pump, fan, etc.) *:

Is an encoder or tachometer being used for speed feedback to the drive? *: YesNo

Any other options being used? (if known) *:

I want to receive mailings from Joliet Technologies, L.L.C.: YesNo

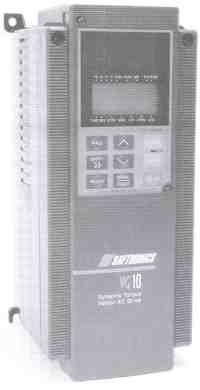

(Obsolete) Saftronics VG10 – Dynamic Torque Vector AC Drive
(Obsolete FINCOR Series 6600)


  • Three control methods
    • Closed Loop Flux Vector
    • Open Loop (Sensorless) Vector
    • Volts / Hertz
  • 100 KA Short Circuit Rating
  • Motor Auto Tuning for optimum performance
    • Full Dynamic Tuning (spinning motor)
    • Static Tuning (loaded motor, not spinning)
    • On-Line Tuning (continuous tuning while running)
  • Keypad: Graphic back-lit LCD combined with digital LED, Copy Function, 5 lines x 13 characters
  • Uniform programming parameters with GP10 and PC10
  • Soft Switching Technology to eliminate output filters
    • 10°C – 50°C (+14°F -122°F)
  • Serial Communication (RS485 Modbus Standard; Lon Works, Device Net, Metasys N2, Profibus-DP, Siemens, and Interbus-S optional)
  • Dynamic Braking built in and includes 3% DB resistor at 10HP and below
  • Dual Motor Parameter Table
  • “Side by Side” mounting with zero clearance to optimize panel space, 30HP and below
  • NEMA 1,12* or 4*, Open Chassis
  • Saflink compatible

Saftronics VG10 - Dynamic Torque Vector AC Drives





Voltage / Horsepower - Saftronics VG10 - Dynamic Torque Vector AC Drives
CE, cUL & UL Approved.

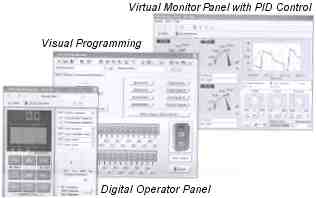

Palm Pilot Saflink Kit
SAFLINK is an innovative tool designed for easier programming and trouble-shooting of Saftronics drives.Please visit their Web site at www.saftronics.com and tryout demo version.
SAFLINK is an innovative tool designed for easier programming and trouble-shooting of Saftronics drives.�

VG10 Part Number Configurator

To purchase any Saftronics drives or information, contact us at:
Phone (815) 725-9696,
Toll Free (866) 492-9888,
Fax (815) 725-9393 or
E-mail info@joliettech.com
