Control Techniques Unidrive SP Free-Standing Cubicle AC Drives  - The Benchmark Free-standing cubicle drives

RATINGS, PRICES & ORDERING:
OVERVIEW

The Unidrive SP Free-standing AC cubicle drives extend the power range of “the Benchmark” solution platform to 1000hp, while providing users with the same integration options as the standard, wall-mount Unidrive SP. Packaged in an IP20 cubicle, these Freestanding drive cublices deliver maximum horsepower density for physical size, and include rectifier, inverter and inductor.

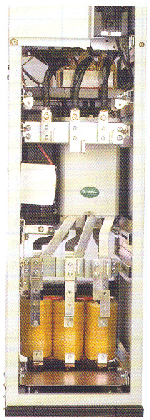

Control Techniques Unidrive SP "Incomer" cubicle.In addition, an “Incomer” cubicle is available to integrate fuse switch/MCCB etc., and an “Application” cubicle is available for additional control and equipment, i.e., a PLC, providing a complete, packaged solution.

Incomer or Applications
Unidrive SP Size 6-8
Control Techniques Unidrive SP Size 6 - 8.
Unidrive SP Size 9 (Two cubicles)
Control Techniques Unidrive SP Size 9 (Two cubuicles).
Cubicle Dimensions
W
H
D
in
mm
in
mm
in
mm
All
15.74
400
87.12
2213
23.62
600

Unidrive SP Free Standing Drives Order String
Control Techniques Unidrive SP Free Standing AC Drives Order String.

FREE STANDING DRIVES RATINGS, PRICES & ORDERING
460VAC, 575VAC and 690VAC Normal Duty

Unidrive SP
Motor
HP
Continuous
Output
Current
Peak
Output
Current
Price
460VAC
Normal Duty
Order Code
Frame
HP @ 460V
IN (A)
(A)
SP6411-XXX
6
150
202
222
CALL
SP6412-XXX
200
236
259
CALL
SP7411-XXX
7
250
290
319
CALL
SP7412-XXX
250
330
363
CALL
SP8411-XXX
8
300
374
411
CALL
SP8412-XXX
350
437
480
CALL
SP8413-XXX
400
540
594
CALL
SP8414-XXX
500
620
682
CALL
SP9411-XXX
9
600
688
756
CALL
SP9412-XXX
600
770
847
CALL
SP9413-XXX
750
850
935
CALL
SP9414-XXX
750
990
1089
CALL
SP9415-XXX
1000
1150
1265
CALL
575VAC
Normal Duty
Order Code
Frame
HP @ 575V
IN (A)
(A)
SP6611-XXX
6
100
125
137
CALL
SP6612-XXX
150
144
158
CALL
SP7611-XXX
7
150
168
184
CALL
SP7612-XXX
200
192
211
CALL
SP8611-XXX
8
250
231
254
CALL
SP8612-XXX
250
266
292
CALL
SP8613-XXX
300
311
342
CALL
SP8614-XXX
350
355
390
CALL
690VAC
Normal Duty
Order Code
Frame
HP @ 690V
IN (A)
(A)
SP6611-XXX
6
150
125
137
CALL
SP6612-XXX
150
144
158
CALL
SP7611-XXX
7
200
168
184
CALL
SP7612-XXX
200
192
211
CALL
SP8611-XXX
8
200
231
254
CALL
SP8612-XXX
300
266
292
CALL
SP8613-XXX
350
311
342
CALL
SP8614-XXX
400
355
390
CALL
(Call Joliet Technologies for prices)

FREE STANDING DRIVES RATINGS, PRICES & ORDERING
460VAC, 575VAC and 690VAC Heavy Duty

Unidrive SP
Motor
HP
Continuous
Output
Current
Peak
Output
Current
Peak
Output
Current
Price
460VAC
Heavy Duty
Order Code
Frame
HP @ 460V
IH (A)
Open loop (A)
Closed loop (A)
SP6411-XXX
6
150
180
234
270
CALL
SP6412-XXX
150
210
273
315
CALL
SP7411-XXX
7
200
240
338
388
CALL
SP7412-XXX
250
290
408
469
CALL
SP8411-XXX
8
250
333
469
539
CALL
SP8412-XXX
300
388
547
628
CALL
SP8413-XXX
350
440
620
712
CALL
SP8414-XXX
400
540
761
874
CALL
SP9411-XXX
9
500
620
874
1004
CALL
SP9412-XXX
600
688
970
1114
CALL
SP9413-XXX
600
770
1085
1247
CALL
SP9414-XXX
750
850
1198
1377
CALL
SP9415-XXX
750
990
1395
1603
CALL
575VAC
Heavy Duty
Order Code
Frame
HP @ 575V
IH (A)
Open loop (A)
Closed loop (A)
SP6611-XXX
6
75
100
130
150
CALL
SP6612-XXX
100
125
162
187
CALL
SP7611-XXX
7
150
144
203
233
CALL
SP7612-XXX
150
168
236
272
CALL
SP8611-XXX
8
200
186
262
301
CALL
SP8612-XXX
250
231
325
374
CALL
SP8613-XXX
250
266
375
430
CALL
SP8614-XXX
300
311
438
503
CALL
690VAC
Heavy Duty
Order Code
Frame
HP @ 690V
IH (A)
Open loop (A)
Closed loop (A)
SP6611-XXX
6
125
100
130
150
CALL
SP6612-XXX
150
125
162
187
CALL
SP7611-XXX
7
150
144
203
233
CALL
SP7612-XXX
200
168
236
272
CALL
SP8611-XXX
8
200
186
262
301
CALL
SP8612-XXX
250
231
325
374
CALL
SP8613-XXX
300
266
375
430
CALL
SP8614-XXX
350
311
438
503
CALL
(Call Joliet Technologies for prices)

Note: Motor horsepower ratings are based on typical motor current ratings. Actual motor currents should be checked before selecting a particular drive. For some high
efficiency motors, the required full load motor current may allow the selection of a smaller drive than is indicated in the chart. The same consideration would also apply for
motors with less common power or voltage ratings.

Normal Duty
Suitable for most applications, current overload is set at 110% for 60 seconds. Where motor rated current is less than the drive rated continuous current, higher over loads are achieved.
Heavy Duty
Suitable for demanding applications, current overload is set at up to 175% for 40 seconds. Where motor rated current is less than the drive rated continuous current, higher overloads (200% or greater) are achieved.
