Magnetek – RVS-DX Digital Soft Starter

UL Listed, cUL and USJoliet Technologies is now offering the Magnetek Line of Soft Starters.

RVS-DX Digital Soft Starter

Magnetek Digital Reduced Voltage Soft Starter RVS-DX.Controls

  • Opto-isolated inputs
  • Auxiliary relays
    • Fault
    • End of acceleration or immediate (programmable)
  • Local and remote reset
  • RS485 Modbus serial communication (option)
    • Control, display, and programming



Generator Starting

  • RVS-DX offers a standard feature for starting from generator or weak main power supply
  • The generator starting feature incorporates auto-frequency tracking from 45 to 65 Hz.



Pump and Special Load ControlPump and Special Load Control Magnetek Soft Starters eliminate several major problems:

  1. WATER HAMMER DURING STOPPING
    The Pump Control feature enables selection between three voltage ramp-down curves or a torque curve, preventing a stall condition which eliminates Water Hammer.

Water Hammer During Stopping

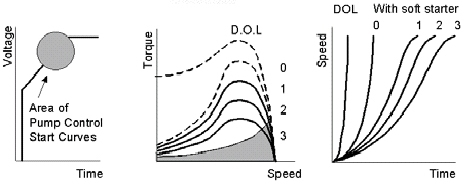

  1. OVER-PRESSURE DURING STARTING
    The Pump Control also enables selection between three voltage ramp-up curves, as well as a torque curve, to reduce peak torque. Current ramp is available for special loads.

Over-Pressure During Starting

  1. FINAL TORQUE FEATURE
    Before completing the deceleration process, the motor torque may reach a level below the load torque and the check valve closes. The motor will continue to run against a closed valve (no load) until it stops. The Final Torque feature allows a set point where the motor stops when the check valve closes.

Final Torque Feature

Magnetek-Uncommon Power - Industrial Controls Group

Copyright © 2004
Information Provided by:
Magnetek ICG
N49 W13650 Campbell Drive
Menomonee Falls, WI 53051
Toll Free: 800-288-8178
Fax: 262-783-3510
