Magnetek - RVS-DX Digital Soft Starter

Magnetek – RVS-DX Digital Soft Starter

UL Listed, cUL and USJoliet Technologies is now offering the Magnetek Line of Soft Starters.

RVS-DX Digital Soft Starter

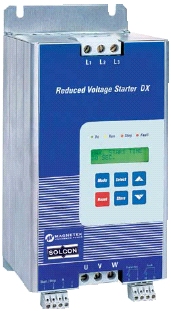

Magnetek Digital Reduced Voltage Soft Starter RVS-DX.Magnetek Industrial Controls offers state-of-the-art, reduced voltage electronic Soft Starters. They are designed to provide operators with unmatched soft starting and stopping for any AC induction motor.The fully featured RVS-DX Digital Soft Starter is available from 8-390 amps, 220-600V three-phase control, and has a built-in bypass.



Advantages at a glance

  • Superior starting and stopping characteristics
  • Comprehensive motor protection package
  • User friendly programming menu
  • Built-in bypass (31-310 amps)
  • Compact footprint
Protection Features

  • Programmable maximum starts
  • Stall detection
  • Electronic shear-pin (jam)
  • Electronic overload with selectable curves
  • Under current
  • Phase loss and phase sequence
  • Under and over voltage
  • Load loss (motor not connected)
  • Shorted SCR
  • Over-temperature



Performance Features

  • Soft start and soft stop
  • Pump control software
  • Torque and current control for optimized
  • starting and stopping
  • Dual adjustment
  • Jog with electronic reversing
  • Generator starting

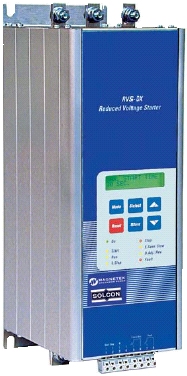

Magnetek RVS-DX Digital Reduced Voltage Soft Starter.
Displays

  • LCD-2 lines x 16 characters
  • Selectable languages: English, German, French and Spanish
  • Two display modes for basic and advanced applications
  • User-friendly operation with default parameters
  • Four LED’s for quick operation status
  • Statistical Data
    • Start time, maximum current during start, run time, number of starts, fault history and current at fault.
