(Obsolete) Saftronics PC10 Mini Vector AC Drives
(Obsolete FINCOR Series 5750)

Saftronics PC10 AC Drives are Obsolete and No Longer Available – They have been Replaced with the Saftronics CV10 Compact Vector AC Drives.

Options & Accessories

HMI Pump Controller

Part number – 043-0907

Function

Provides an economical pump controller for standalone pumping systems

Features

  • 4 line 20 character backlit LCD
  • Built-in buzzer for alarm
  • Easy to use keypad (12 keys)
  • Custom pump control program
  • Real time clock and calendar
  • Pump system specific functions:
    • PI control (normal and reverse operation)
    • Level control
    • Start/Stop timer control
    • Programmable shutdown levels
    • High pressure shutdown function
    • Automatic restart function
    • History logging up to 1 month
    • Programmable user units (PSI, GAL, %, GPM etc.)
    • Anti-backspin function
  • Custom configurable monitor screens
    ————————————————-
  • Password protection for monitor and parameter section
  • Automatic drive reset function
  • Internal feedback function (e.g. PI control based on output current)
  • 21 monitor signals (motor torque, total accumulation of gallons, etc.)
  • Local/Remote control
  • 19.2 KB communication speed
  • Windows based tool, to Saflink pump master program

Specifications

Communications –
HMI to PC10 – RS485 (2 wire)
HMI to PC – RS232 (Pump Master Saflink)

Power Supply –
9V to 40V DC (100 mA @ 24 VDC)
(Can be supplied as an option PIN 012-1605)

Mechanical –
Enclosure size: 5.7″ x 6.7″ x 2.0″
Can be wall or panel mounted

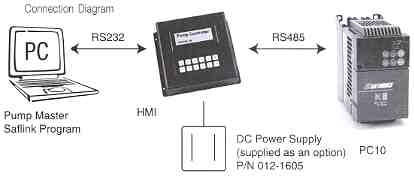

Connection Diagram

HMI Pump Controller Connection Diagram
