This Transformer is NO Longer Available

If you are in need of an Isolation Transformer, send us your specifications and we will be happy to send you a detailed quote.

Surplus Equipment – 880KVA Drive Isolation Transformer FOR SALE
880KVA Drive Isolation Transformer

Call Joliet Technologies for Pricing

Specification:

  1. NEMA 1 Indoor Enclosure with ANSI 61 Powder Coat Finish
  2. Aluminum Wound
  3. 220°C Insulation

Nameplate Information:

  • Dry Type Transformer
  • Class AA
  • 880KVA
  • 3 Phase
  • 60 Hertz
  • 150°C Rise
  • L.V. 208 (Delta) Primary, 10 KV BIL, 2443 Amps
    • L.V. Tap 1 – 223 Volts
    • L.V. Tap 2 – 208 Volts
    • L.V. Tap 3 – 193 Volts
  • H.V. 460Y/265 Secondary, 10 KV BIL, 1105 Amps
  • Weight: 4700lbs.
  • No.: A61425

880KVA Drive Isolation Transformer Nameplate and Connections

Low Voltage and High Voltage Terminal Details:

Low Voltage and High Voltage Terminal Details

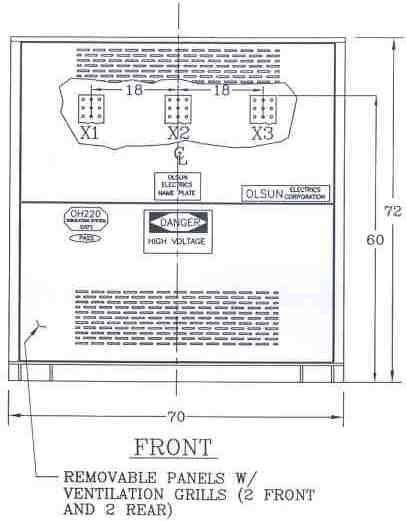

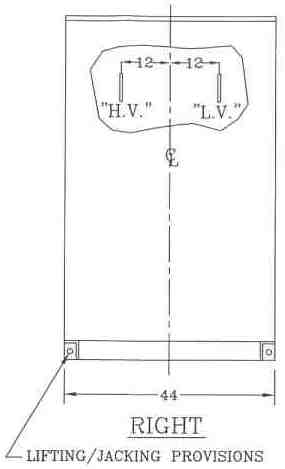

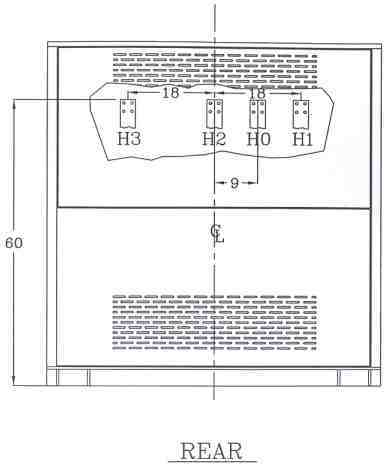

Dimensions:
