ABB - ACS150 AC Variable Frequency Component DrivesABB General Machinery Drives
ACS350, 0.5hp to 10hp Technical Guide

ABB ACS 350 General Machinery Drives

Choice 1: Simply contact your local ABB drives sales office and let them know what you want. Use page 4 as a reference section for more information.

OR

Choice 2: Build up your own ordering code using the simple 7-step approach below. Then, contact your local ABB Drives sales office.

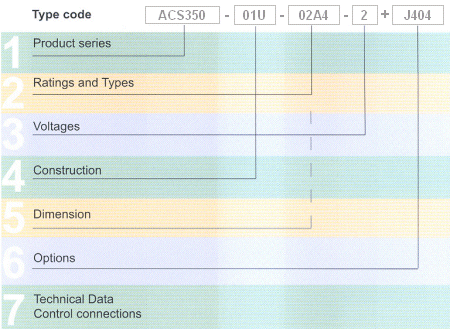

ABB ACS350 General Machinery Drives Type Code.

Contact Joliet Technologies for ABB ACS350 Component Drives.
Phone: (815) 725-9696 or
Toll Free: (866) 492-9888
Fax: (815) 725-9393
E-mail: info@joliettech.com
RFQ - Request for Quote

ABB General Machinery Drive, ACS350

ACS350

-

01U

-

02A4

-

2

+

J404


What is an ABB ACS350 general machinery drive?
The ABB ACS350 machinery drive is designed specifically for the OEM machine-building sector. In this sector, the manufacturing time per unit is critical. The ACS350 is designed to be the fastest drive in terms of installation, setting parameters and commissioning. The ACS350 has been designed to be as user-friendly as possible, yet provide high application flexibility. The ACS350 offers diverse functionality to cater to the most demanding needs.

Where can it be used?
ABB general machinery drives are designed to meet the requirements of an extensive range of machinery applications. The drive is ideal for food and beverage, material handling, textile, printing, rubber and plastics, and woodworking applications.

Highlights
  • FlashDrop
  • Sensorless Vector Motor Control
  • Sequence programming
  • Impressive software and compact hardware
  • Optimized interfaces for users and machines
  • Unified height and depth
  • Convenient installation
  • Coated boards as standard
  • Built-in brake chopper as standard
Features Benefits Notes
FlashDrop Faster and easier drive set up and commissioning. New fast, safe and trouble free method to download parameters available without electricity - Patented.
Sequence programming Logic programming included as standard.
PLC-like functions standard
Application specific 8-state programming with comprehensive triggering conditions.
Software State of the art technology and performance with exceptional flexibility. Sensorless vector and flux vector control with innovative features.
User interfaces Cost efficient approach offering different control panels according to functionality need. Blank cover
Basic panel with numerical display
Advanced control panel with clear alphanumerical dynamic menus, real time clock and 14 languages.
Cabinet compatibility Optimum installation layout and efficient cabinet space usage. Screw, DIN-rail, sideways and side-by-side mounting. Unified height and depth.
Fieldbuses High speed communication with compact and robust fieldbus design. Enclosed plug-in type of fieldbus adapter.
Built-in EMC filter No extra space, parts, time or cost required. 2nd environment filter complying with IEC 61800-3 as standard.
Coated boards Longer lifetime in hostile environments. Reduced service. Protections against moisture and hostile particles as standard.

ABB Inc.

ABB Inc.
Low Voltage Drives
16250 W. Glendale Drive
New Berlin, WI 53151
ABB Inc.
Drives & LVC Canada
3299 J.B. Deschamps Blvd.
Lachine, Quebec H8T 3E4
Telephone
Fax
Internet

 (800) 752-0696
 (262) 785-0397
http://www.abb.us/drives

Telephone
Fax
Internet

 (800) 215-3006
 (514) 420-3137
http://www.abb.com/motors&drives
http://www.abb-drives.com

2006 ABB Inc. ACS350-PHTC01U-EN REV B, Effective: 1/1/06.
Specifications subject to change without notice.
